Unimat MetalLine

Like all UNIMAT tool kits, MetalLine is modular, but MetalLine has solid components made of pure metal, perfectly crafted and engineered to provide durability, stability and accuracy.

Specifications:
Engine - 20 000 rotations per minute, 12V DC
Countershaft - M12x1, 8-mm hole through the shaft, centrally tuned dual ball bearings
Reduction - 6:1 or 2.3:1 (3333 or 8000 rotations per minute)
Sliders - 50 mm (transverse), 145 mm (longitudinal), gait thread screw 1 mm, accuracy 0.08mm
Retainer - M12x1, 30 mm stroke case
Adapters - 110-240V/50-60 Hz, 12V DC, 2A
Torque head with three forks - 3 reversible jaws, automatically centered, clamping range 1, - 56 mm (12 - 65 mm external)

Slides, tailstock and intermediate pieces are composed of metal, manufactured and treated on cutting edge CNC machines for perfect alignment. This guarantees a high level of accuracy despite the modularity of all machines.

MetalLine excels in making models and technical education as well as industrial use.

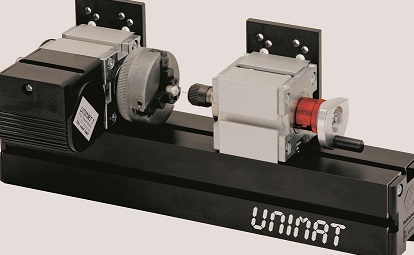

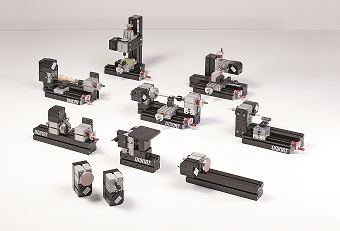

Unimat MetalLine allows for he building of the following machine variations: Lathe, Vertical Mill, Horizontal Mill, hand sander, hand drill, Center/ pearl drilling.
